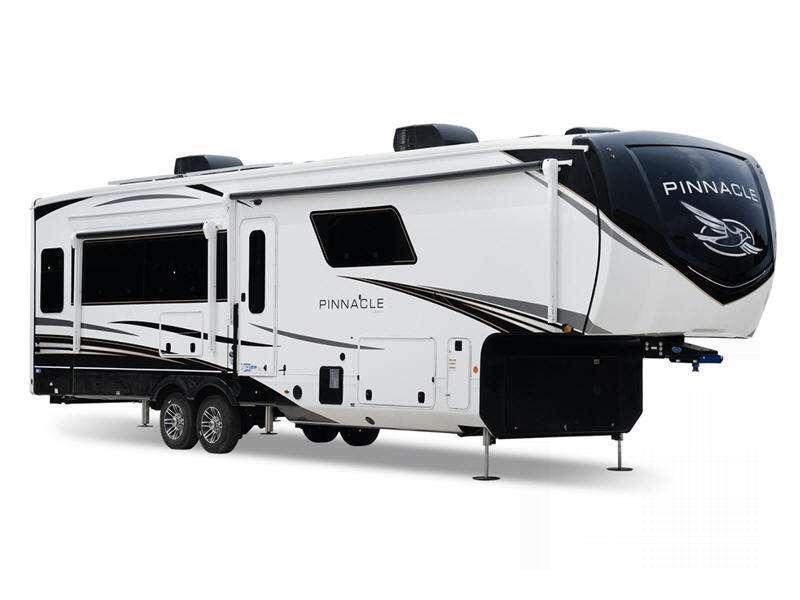

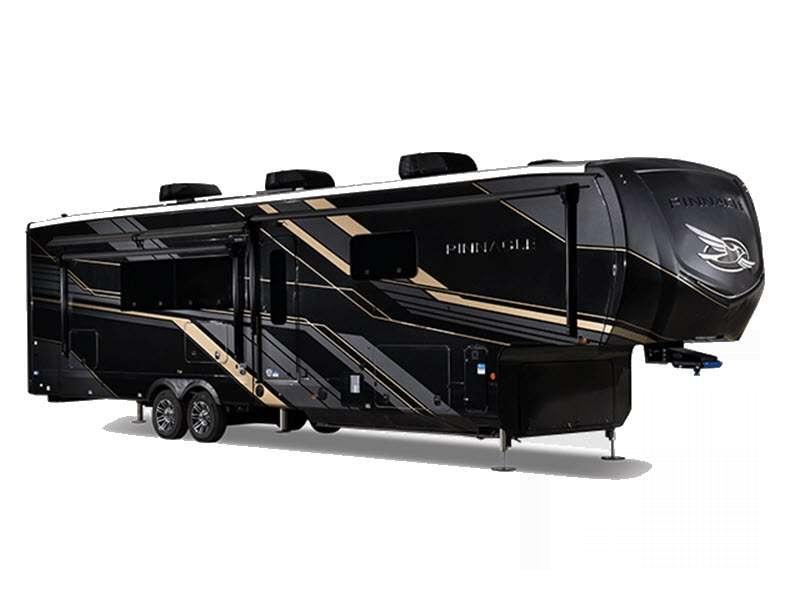

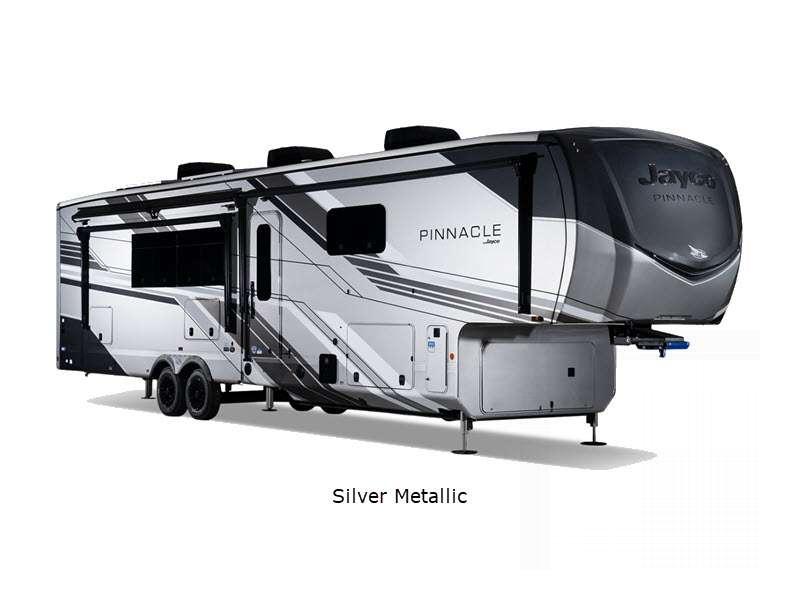

Jayco Pinnacle Fifth Wheel

Previous
Next
1 of 20

The Jayco Pinnacle is more than just another fifth wheel. It's the peak of luxury and comfort no matter the destination!



Each Pinnacle includes the Jayco exclusive 5-Star Handling Package with Dexter axles, a MORryde pin box for a smoother tow for maximum safety on the road,  Dexter heavy-duty shackles, a MORryde rubberized suspension system allowing you to better absorb and isolate road shock, and Goodyear Beast tires.  Some interior luxury highlights include the residential-grade, wood-plank vinyl flooring, crown molding with LED lighting in the living area and kitchen, and custom miter-cut cabinet doors with hidden hinges.



Choose your favorite Pinnacle fifth wheel today, and start traveling with ease, and staying in comfort at any destination.

  • Specifications

    Sleeps 4
    Slides 3
    Length 40 ft 9 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 5 in
    Int Height 9 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Hitch Weight 2730 lbs
    Gross Weight 16500 lbs
    Dry Weight 13535 lbs
    Cargo Weight 2965 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 16"
    Furnace BTU 40000 btu
    Number Of Bunks 1
    Available Beds King
    Refrigerator Type Residential Refrigerator
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 36" in
    Number of Awnings 2
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu

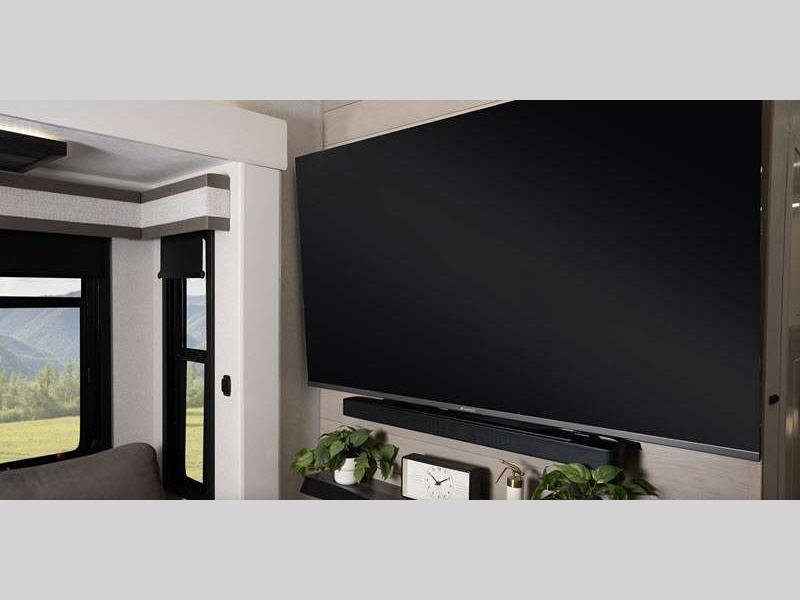

    TV Info LR Big Screen LED HDTV, BR 32" LED TV
    Awning Info 19' Power, Opt. 11' Power
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 36KPTS

    Pinnacle 36KPTS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle 36KPTS fifth wheel highlights: Tri-Fold Hide-A-Bed Residential ... more about Pinnacle 36KPTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 3
    Length 41 ft
    Ext Width 8 ft 6 in
    Ext Height 13 ft 6 in
    Int Height 9 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Hitch Weight 2815 lbs
    Gross Weight 16500 lbs
    Dry Weight 13455 lbs
    Cargo Weight 3045 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 16"
    Furnace BTU 40000 btu
    Number Of Bunks 1
    Available Beds King
    Refrigerator Type Residential Refrigerator
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 2
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED TV
    Awning Info 15' Power, Opt. 11' Power
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 36SSWS

    Pinnacle 36SSWS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle 36SSWS fifth wheel highlights: Front Sitting Area Bedroom Dual ... more about Pinnacle 36SSWS

    Specifications

    Sleeps 4
    Slides 3
    Length 0 ft
    Ext Width 0 ft
    Ext Height 0 ft
    Int Height 0 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Tire Size 16"
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential Refrigerator
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 2
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED TV
    Awning Info 19' Power, Opt. 10' Power
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 37MDQS

    Pinnacle 37MDQS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle 37MDQS fifth wheel highlights: Den/Office Loft Residential ... more about Pinnacle 37MDQS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 4
    Length 0 ft
    Ext Width 0 ft
    Ext Height 0 ft
    Int Height 0 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Tire Size 16"
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential Refrigerator
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 36" in
    Number of Awnings 2
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED TV
    Awning Info 19' Power, Opt. 10' Power
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 37RLWS

    Pinnacle 37RLWS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle 37RLWS fifth wheel highlights: Front Sitting Area Bedroom Dual ... more about Pinnacle 37RLWS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 3
    Length 0 ft
    Ext Width 0 ft
    Ext Height 0 ft
    Int Height 0 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Tire Size 16"
    Furnace BTU 40000 btu
    Number Of Bunks 1
    Available Beds King
    Refrigerator Type Residential Refrigerator
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 2
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED TV
    Awning Info 20' Power, Opt. 10' Power
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 38FLWS

    Pinnacle 38FLWS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle 38FLWS fifth wheel highlights: Dual Entry Front Living Six Slides ... more about Pinnacle 38FLWS

    Specifications

    Sleeps 6
    Slides 6
    Length 0 ft
    Ext Width 0 ft
    Ext Height 0 ft
    Int Height 0 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Tire Size 16"
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential Refrigerator
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 36" in
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED TV
    Awning Info 20' Power
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 38REFS

    Pinnacle 38REFS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle 38REFS fifth wheel highlights: Five Slides Rear Living Two ... more about Pinnacle 38REFS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 5
    Length 43 ft
    Ext Width 8 ft 6 in
    Ext Height 13 ft 5 in
    Int Height 9 ft
    Interior Color Cappuccino, Latte, Greystone
    Exterior Color Desert Sand, Carbon Steel
    Hitch Weight 2670 lbs
    Gross Weight 16995 lbs
    Dry Weight 13870 lbs
    Cargo Weight 3125 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 16"
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential Refrigerator
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 4
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    AC BTU 30000 btu
    TV Info LR Big Screen LED HDTV, BR 32" LED TV
    Awning Info 16' Power
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Pinnacle Features:

Standard Features



Exterior

  • Wide-body, 102-inch frame
  • Wide-stance front landing gear
  • TuffShell vacuum-bonded, laminated walls
  • Climate Shield:
    • Enclosed, insulated, heated underbelly
    • High-BTU output furnace (40,000-BTU)
    • Astrofoil in roof and floors
  • Aerodynamic front and rear cap with LED lights
  • Seamless composite roof covering
  • 12-inch I-class cambered, structural-steel I-beams
  • Completely enclosed and protected slideout mechanisms
  • Frameless, dark-tinted, safety-glass windows
  • 30-inch x 78-inch entry door with oversized window
  • Screen door with kick plate
  • Exterior marine-grade speakers (2)
  • Enclosed, protected basement drop-frame
  • Cable TV and outlet in basement
  • Convenient dual propane compartment (60-pound capacity) on off-doorside
  • Doorside compartment framed and vented for third propane bottle
  • Stor-Galore pass-through basement storage
  • Heated, enclosed Uni-Dock utility center
  • 50-amp power service
  • 75-gallon fresh water tank
  • 50-gallon black tank capacity minimum (n/a 37FLWS)
  • Cable/satellite TV prep
  • Digital TV antenna
  • Outside grill prep
  • Under-mounted spare tire
  • Roof ladder
  • Hitch light
  • Upper deck slideout convenience light
  • EZ-Cord cargo area extension cord access port
  • Cargo area storage system (select models)

Interior

  • Custom residential miter-cut maple cabinet doors with hidden hinges
  • Hardwood cherry cabinet stiles
  • Hardwood slideout fascia
  • Residential-style pantry with pull-out drawers
  • Soft-close steel ball-bearing drawer guides, 75-pound capacity with full extension
  • Large-split, under-mounted, stainless-steel sink
  • Residential-grade, pull-out kitchen faucet
  • Water heater bypass
  • 21 cu. ft. residential refrigerator with water/ice in door
  • 1,200-watt inverter
  • Furrion Executive Chef gas cooktop
  • Residential-grade wood-plank vinyl flooring
  • Shaw R2X stain-resistant residential carpeting
  • Night light toe-kick lighting in bedroom, bathroom and kitchen
  • 90-amp power center with Charge Wizard
  • Command Center for switches
  • Closeable and directional A/C vents
  • Prep for third A/C – prewired
  • Tri-fold hide-a-bed sofas with ottoman
  • Powered reclining theater seat with heat and massage
  • Ceiling fan (n/a 37FLWS)
  • Hardwood ceiling mantle with pendant lighting
  • Crown molding with LED lighting in main living/kitchen areas
  • LED ceiling lights throughout
  • 78-inch height in living area slideout rooms
  • Porcelain bath stool with foot flush

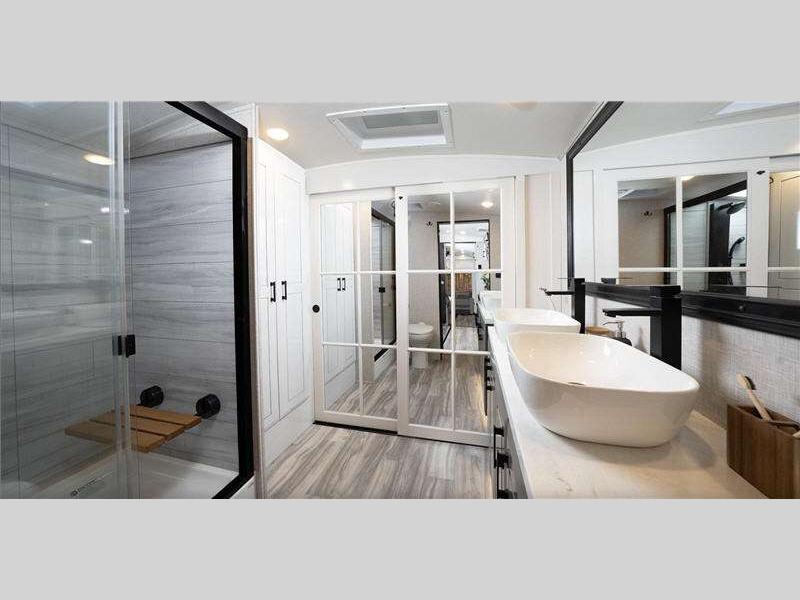

  • Under-mounted stainless-steel bathroom sink
  • Utility hooks in bathroom
  • Skylight above shower
  • Full-trunk, under-bed storage

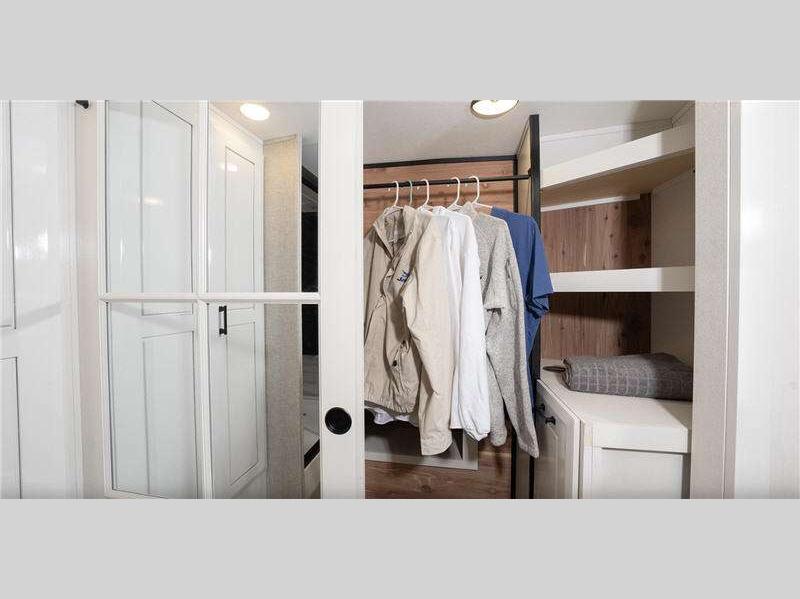

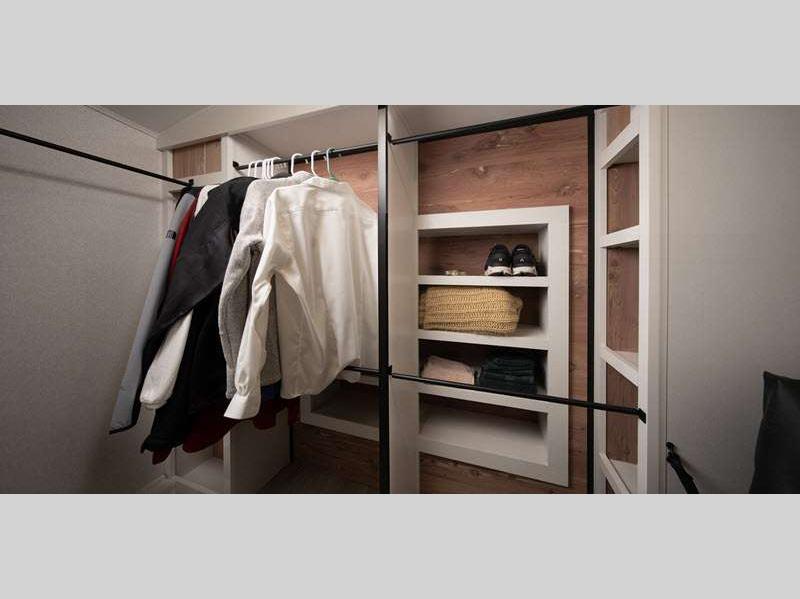

  • Walk-in-style front closet with dual hanging rods and cedar lining
  • Mullion-style front wardrobe doors
  • Washer/dryer prep (accommodates stackable unit)
  • Oversized bedroom dresser storage
  • Bedroom slide fascia built-in night stand storage system

Customer Value Package (Mandatory)

  • 15,000-BTU Whisper Quiet A/C
  • Arched interior ceiling with 82” upper deck interior height
  • Bath skylight
  • Bathroom power vent
  • Bedspread
  • Oversized folding exterior grab handle
  • Frameless G20 dark-tinted windows
  • LED interior lighting
  • Security lights
  • Slam-latch baggage doors with strut assist
  • Sofa and bed pillows
  • Solid-surface kitchen countertops
  • Keyed Alike exterior doors locking system

Luxury Package (Mandatory)

  • 6-point electric auto leveling system
  • Bedroom 15,000-BTU Whisper Quiet A/C
  • Backup camera/monitoring system prep
  • Carefree power awning with LED light strip
  • Indoor/outdoor central vacuum system with kick pan
  • 12” Magnum Frame System
  • Magnum Truss XL6 Roof System
  • Helix Cooling System featuring a Jayco-exclusive duct design, exterior-mounted A/C units, directional/closable A/C vents, and larger return air vents with user accessible filters
  • MOR/ryde StepAbove entrance steps
  • Bluetooth/HDMI high-output entertainment system
  • Electric, thermostat-controlled fireplace
  • LED exterior lighting
  • Oversized battery compartment
  • Fully painted and clear coated front cap
  • Power kitchen vent with wall controls and rain sensor
  • Sidewall and roof mount solar prep
  • Whole coach water purification system
  • Full-timer kitchen storage system
  • Washer/dryer prep
  • Gel 360 front cap, rear cap and sidewalls (all gelcoat fiberglass)
  • Big-screen LED HDTVs in living areas

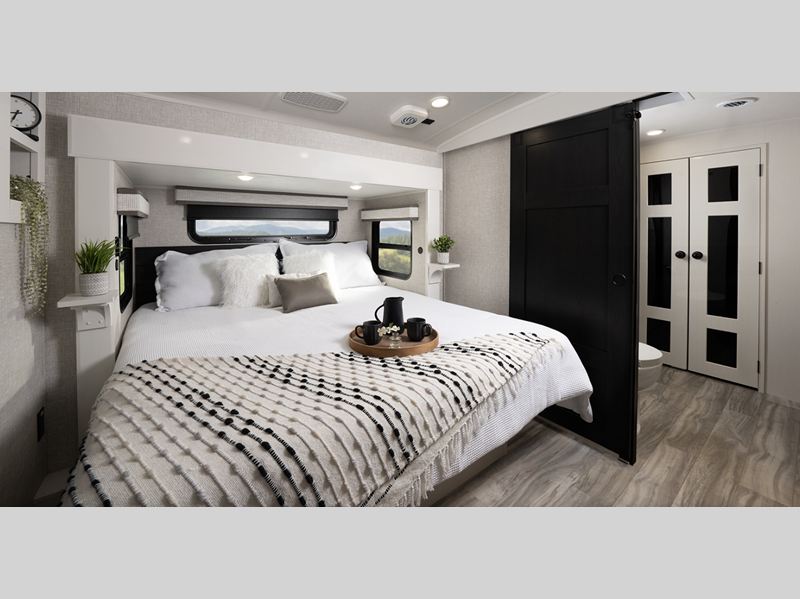

  • Jayco luxury sleep system with Simmons residential foam-top mattress
  • Dual sun shade and blackout roller shades in living room
  • 32-inch LED HDTV in bedroom
  • Residential natural Kingston Cherry hardwood cabinet doors, miter-cut with 3-inch rails

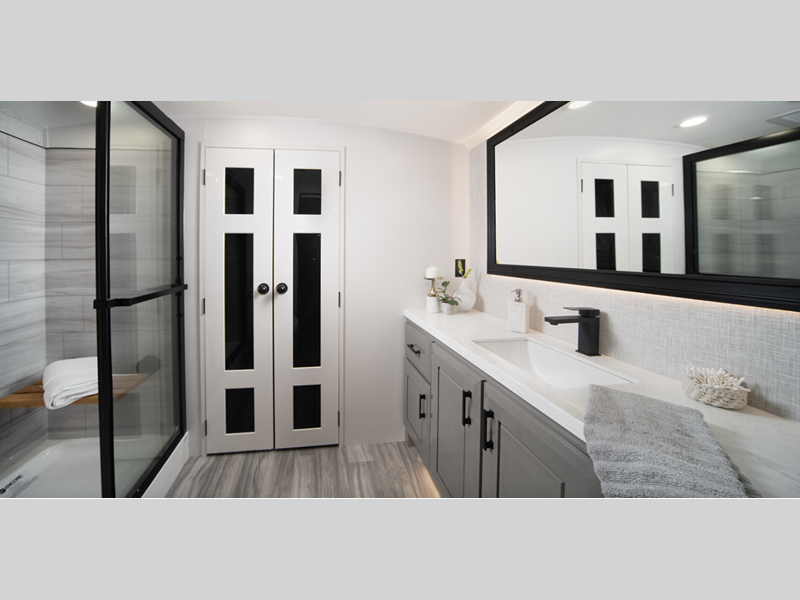

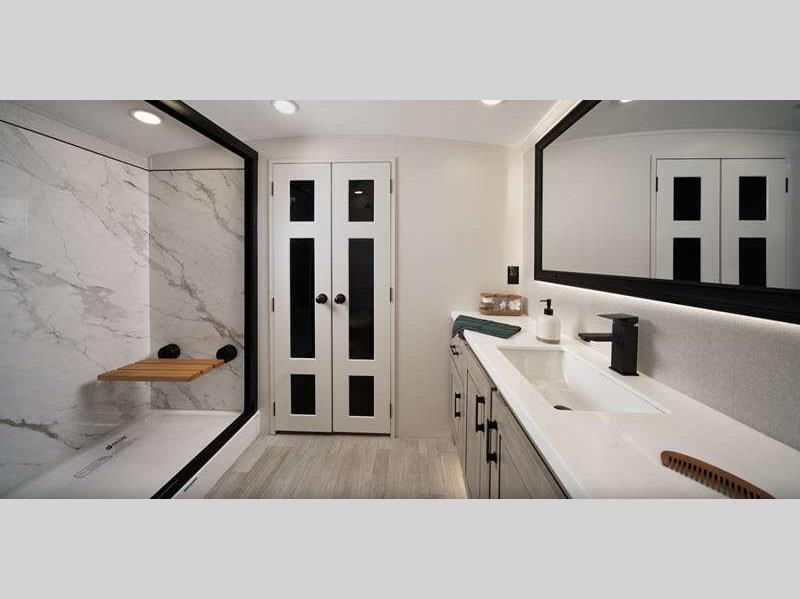

  • Oversized 36-inch-wide residential showers
  • Powered 50-amp cord reel
  • Freestanding table with 2 dinette chairs and 2 folding chairs

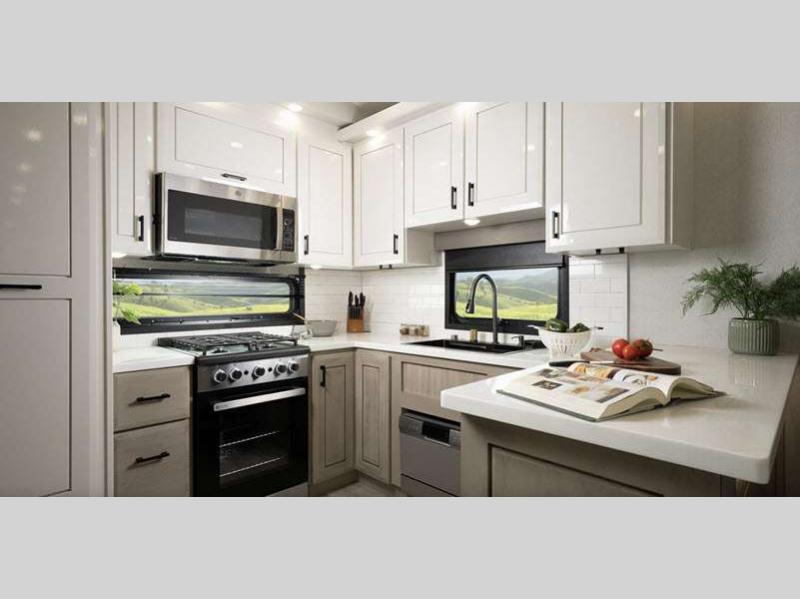

  • Stainless-steel convection microwave oven
  • One Control digital command system for levelers, slideouts and exterior lights
  • Blackout roller shades in bedroom

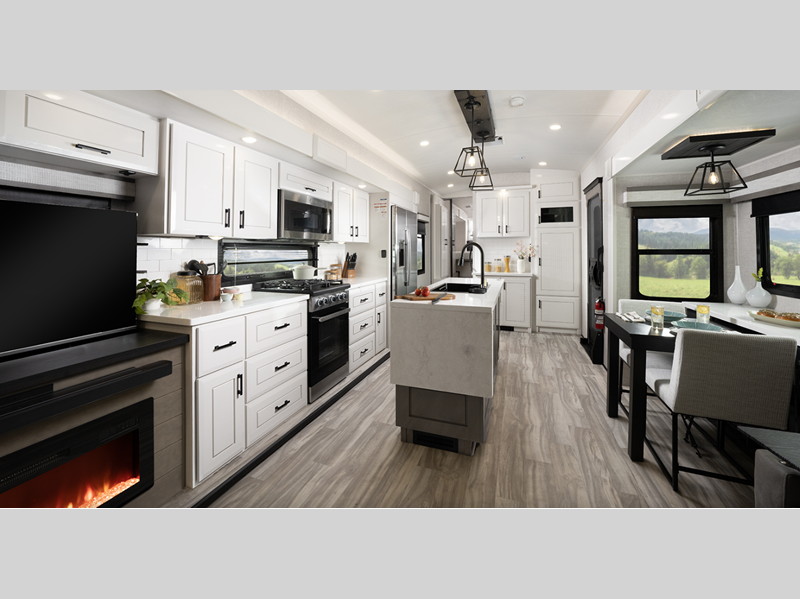

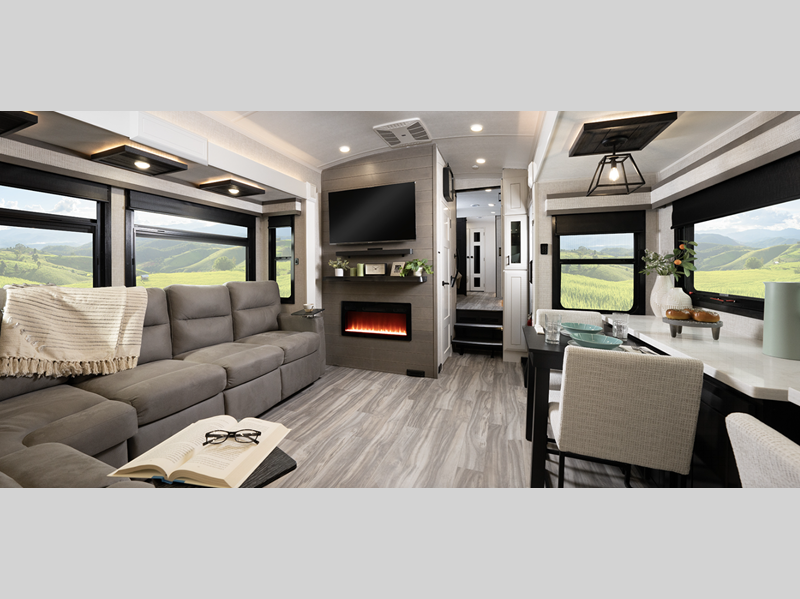

  • Wood mantle fireplace surround with hidden storage and pull-out drawer
  • Built-in wall oven

5-Star Handling Package

  • Dexter 7,000-lb. axles with Nev-R-Adjust brakes
  • MORryde LRE 4000 suspension system
  • MORryde heavy-duty shackles with wet bolt fasteners and bronze bushings
  • MORryde pin box
  • Goodyear 16-inch BEAST tires

Options

  • Canadian Standards
  • Customer Value Package - 15,000 BTU Central Air, Arched Interior Ceilings, Bath Skylight, Bathroom Power Vent, Bedspread, Folding Exterior Grab Handle, Frameless Dark Tint Windows, LED Interior Lighting, Security Lights, Slam Latch Baggage Doors, Sofa and Bed Pillows, Solid Surface Kitchen Countertops, Keyed Alike Exterior Door Locking System
  • Customer Value Package - 15,000 BTU Central Air w/Heat Pump
  • Pinnacle Luxury Package - 12" Magnum Frame System, Magnum XL6 Truss System, MOR Ryde Step-Above Entry Steps, Bedroom 15K Whisper Quiet AC, 6 pt. Electric Auto Leveling System, Residential Kingston Cherry Hardwood Cabinet Doors, Mitre Cut w/3" Rails, One Control Digital Command System for Levelers, Awnings, Sliderooms and Lights, Backup Camera Prep, Bluetooth/HDMI Entertainment System, Carefree Power Awning & LED Light Strip, Central Vacuum, Electric Fireplace, LED Exterior Lighting, Oversized Battery Compartment, Fully Painted Gelcoat Fiberglass Front Cap, Power Kitchen Vent, Solar Prep, Helix Cooling System, Whole Coach Water Purification System, Fulltimer Kitchen Storage, 32" Bedroom TV, Big Screen LED HDTVs in Living Area, Blackout Roller Shades in Bedrooms, Built-in Wall Oven, Dual Sun Shade and Blackout Roller Shades in Living Areas, Free Standing Table and Four Chairs, Gel 360 - Front Cap, Rear Cap, Sidewalls all Gel Coat Fiberglass, Jayco Luxury Sleep System with Simmons Residential Foam Mattress, LED Back-Lit Crown Molding in Living Area, Oversized 36" Wide Residential Showers, Powered 50 Amp Cord Reel, Stainless Steel Over-the-Range Microwave Oven, Washer/Dryer Prep.
  • 5-Star Handling Package - Good Year Beast Tires, Dexter 7000 lb. Axles w/Nev-R-Adjust Brakes, MOR/ryde CRE 4100 Rubberized Suspension, Dexter Heavy-Duty Shackles w/Wet Bolt Fasteners & Bronze Bushings, MOR/ryde Pin Box
  • Queen Bed
  • Electric Euro Lift Bunk Bed (36FBTS, 36KPTS, 36SSWS, 37MDQS, 37RLWS)
  • On Demand Tankless Water Heater System
  • Convection Microwave
  • Carpet In Living Area (36FBTS, 36KPTS, 37MDQS, 37RLWS, 37RSTS, 38REFS, 39SPQS, 36SSWS)
  • Recliner Chairs (2) ILO Theater Seating Sofa (36FBTS, 36KPTS)
  • 18 cu.ft. Polar Max Norcold 2 way Refrigerator w/Ice Maker
  • FURRION Backup Camera

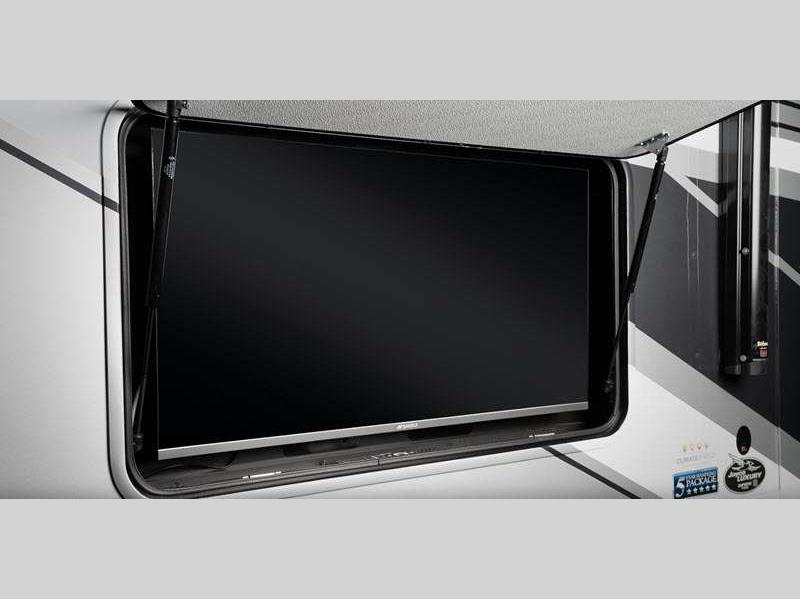

  • 32" Exterior Built-in TV
  • 3rd A/C (Low-Profile) in Living Area (15K BTU) (38FLWS)
  • Sanicon Turbo Sewer Macerator Dump System
  • Generator Prep with 120lb Max LP System
  • 5500 Watt Onan Microquiet Generator
  • Dual Pane All Weather Windows
  • Removable Patio Steps (39SPQS)
  • 2nd Power Awning (36FBTS, 36KPTS, 36SSWS, 37MDQS, 37RLWS, 37RSTS)
  • Slideout Awning with Metal Wrap(3) (36FBTS, 36KPTS, 37RLWS, 37RSTS)
  • Slideout Awning with Metal Wrap (4) (36SSWS, 37MDQS)
  • Slideout Awning with Metal Wrap (5) (38FLWS, 38REFS)
  • 2" Accessory Receiver Hitch
  • Exterior Grill



See us for a complete list of features and available options!



All features and specifications are subject to change.

Manu-Facts:

Jayco, Inc. was founded in 1968 by a man of strong faith and vision. The late Lloyd J. Bontrager, family man and inventor, felt he could build the world a better RV. He longed to create a company of his own, one that clearly reflected his ideals: a company where everyone would be treated as "family".

With encouragement from his wife Bertha, Lloyd started Jayco on their farm--in two chicken houses and a barn! He developed his own prototype camping trailer and a unique lifter system for fold-down campers, the basic design of which is patented and still in use today. By the end of 1968, his fledging company of 15 employees had sold 132 fold-down camping trailers.

Today, Jayco's "family" of employees has grown to nearly 1,500 people, while more than 25,000 people join our "extended family" of customers each year.

At Jayco, our mission statement is: Committed to being the most respected name in recreation vehicles. We will consistently build a high quality, high value, competitively priced product at acceptable margins, treat every situation with the highest level of integrity in a timely manner, and continually work to reduce total cost to achieve acceptable returns.
